Application
Designed to enclose electrical and/or electronic equipment in wallmount applications where viewing of component operation is necessary while maintaining protection ratings.
Impressive styling features like hidden hinges and attractive latching systems make the Eclipse a suitable addition to any high-tech equipment installation.

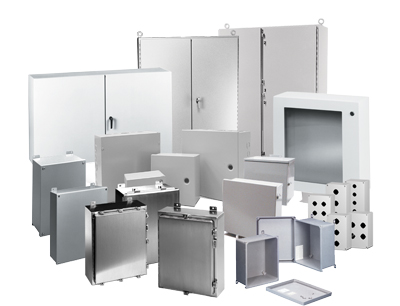

A wide range of sizes and practical accessories make this product line a complete package.
Standards
UL 508A Type 3R, 4, 4X and 12
CSA Type 3R, 4, 4X and 12
Complies with
IEC 60529, IP66
NEMA Type 3R, 4, 4X, 12 and 13
Construction
Formed 14 (24x24" and larger) or 16 (24x20" and smaller) gauge stainless steel.

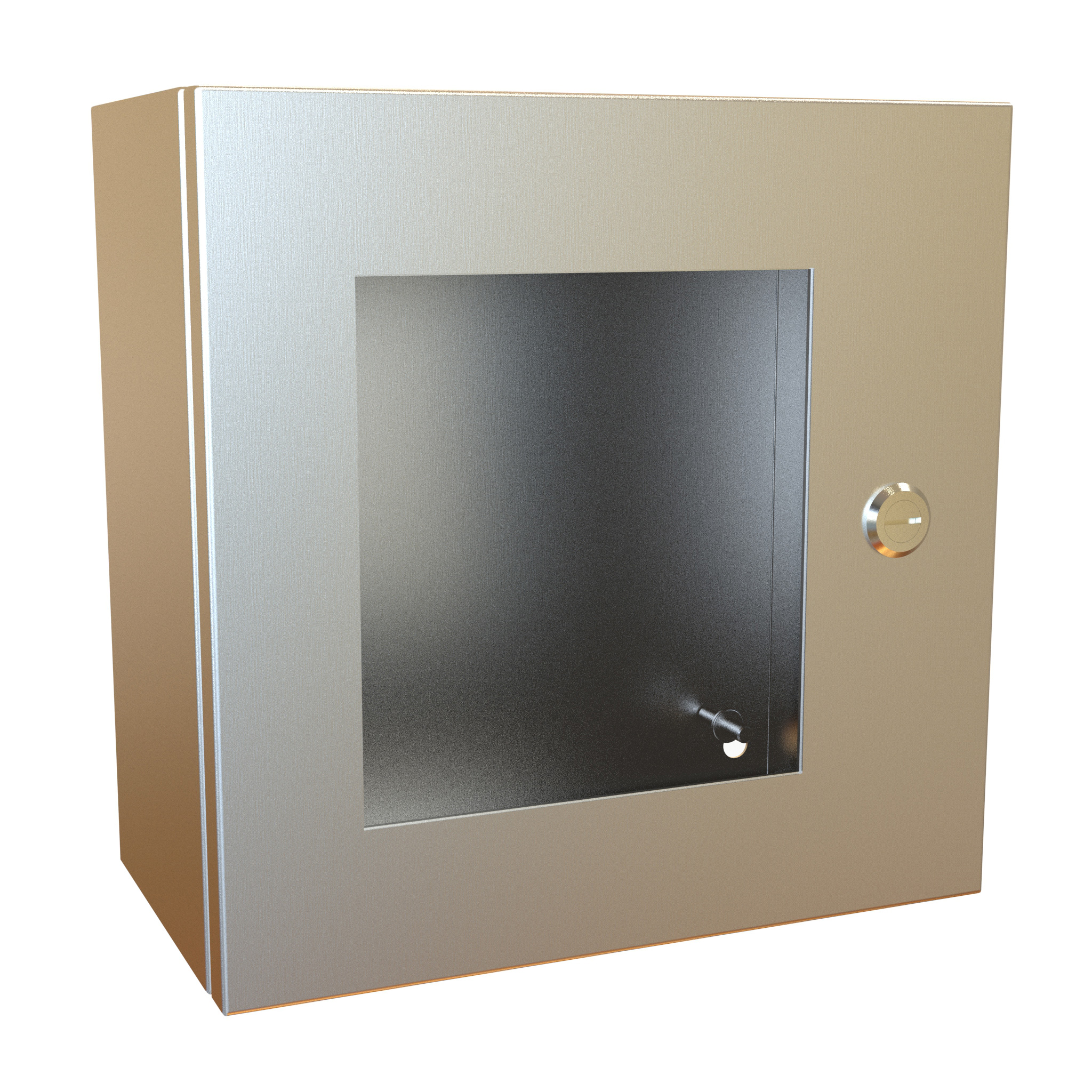

Full view UV resistant polycarbonate window allows maximum viewing area of inner panel.
Continuously welded seams ground smooth.
Door stiffeners are provided where required for increased strength and rigidity - designed to also permit additional mounting options.
Formed lip on enclosure to exclude flowing liquids and contaminants.
Door latches feature the added safety of quarter turn slot requiring use of tool for opening.
Doors may be easily removed for modifications and are interchangeable.
Seamless poured-in place gasket.
Collar studs provided for mounting inner panel.
Includes hardware kit with panel mounting nuts and sealing washers for wall mounting holes.
Bonding stud provided on door and grounding stud installed in enclosure.
Hinges are constructed from stainless steel.
Stainless steel hinge pins and quarter turns.
Finish
Cover and enclosure are natural stainless steel with a smooth brushed finish.
